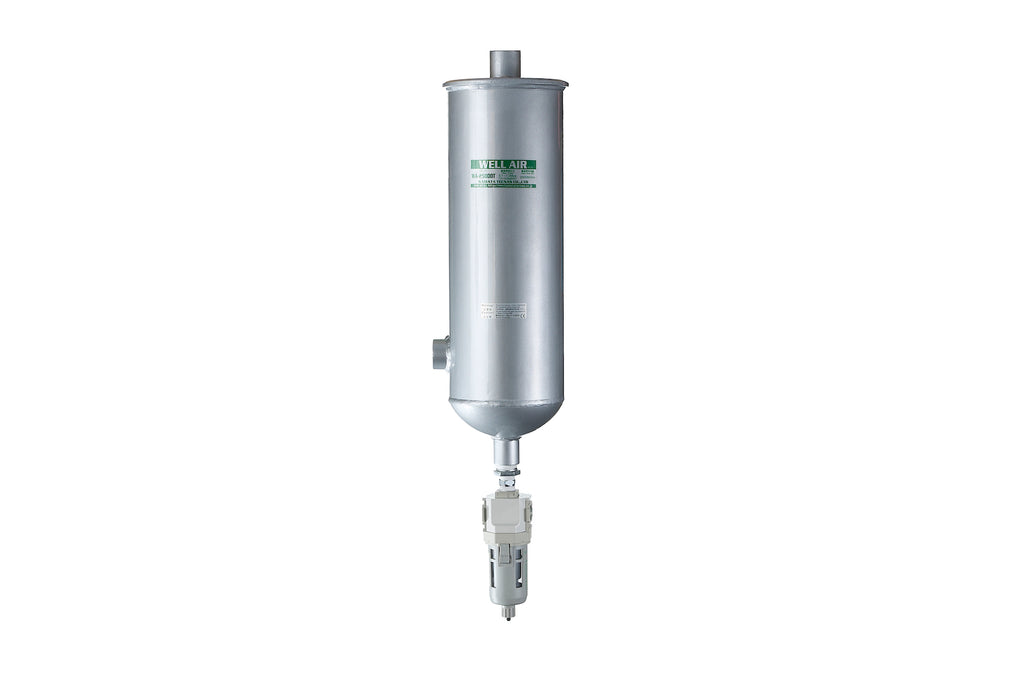

WA-2500DT

Compressed air purifiers wellair-DT series　

Auto-drain discharges debris and oil laden condensate smoothly.　

Maximum operating flow rate 2500 (Nl/min)
Operating pressure range 0.1~1.0(Mpa)
Guaranteed pressure resistance 1.5 (Mpa)
Fluid temperature 5~65(°C)

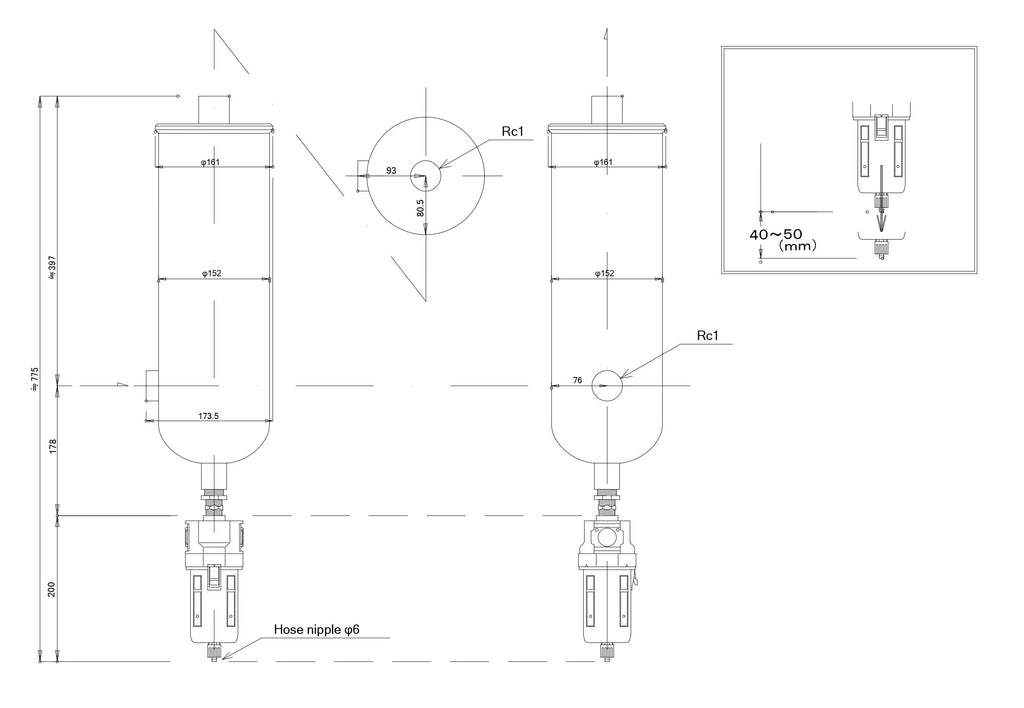

Condensate outlet connection diameter hose nipple diameter 6 mm
Air pipe connection diameter 1 (Rc)
Weight 12.4(kg)
