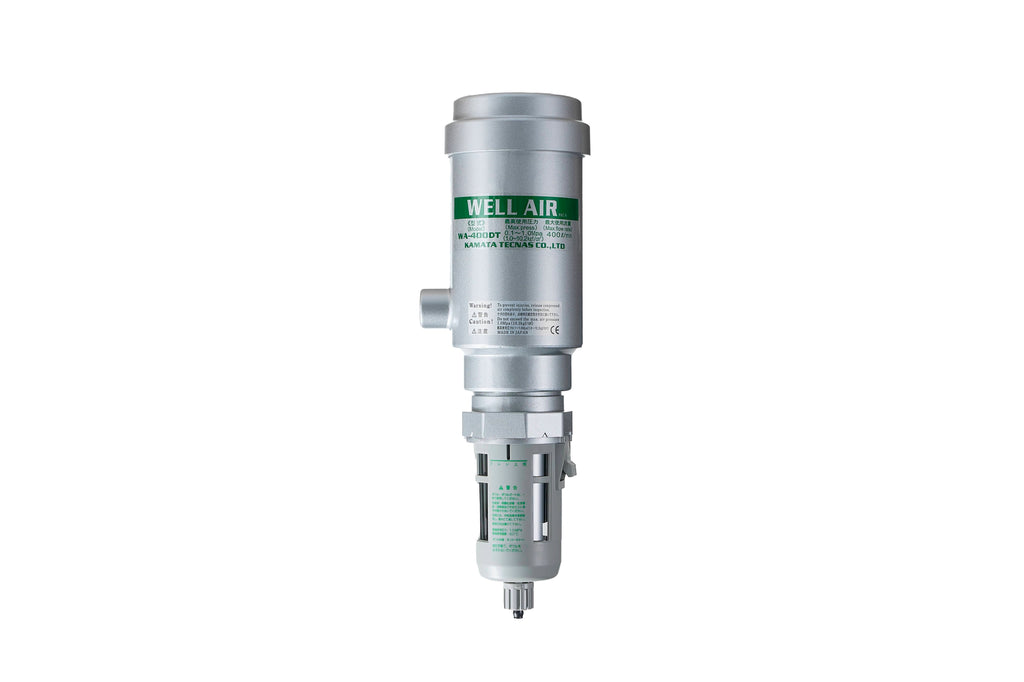

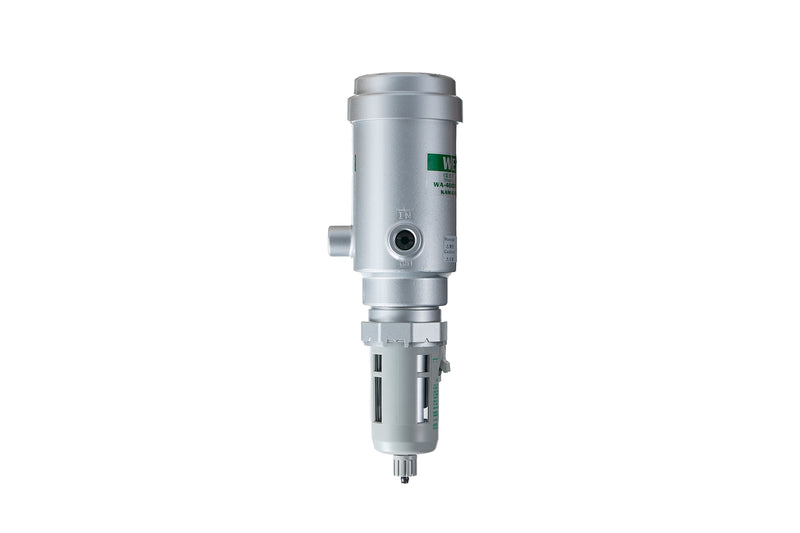

WA-400DT

Compressed air purifiers wellair-DT series　

Auto-drain discharges debris and oil laden condensate smoothly.　

Maximum operating flow rate 400 (Nl/min)
Operating pressure range 0.1~1.0(Mpa)
Guaranteed pressure resistance 1.5 (Mpa)
Fluid temperature 5~65(°C)
Condensate outlet connection diameter hose nipple diameter 6 mm
Air pipe connection diameter 3/8 (Rc)
Weight 1.11(kg)
